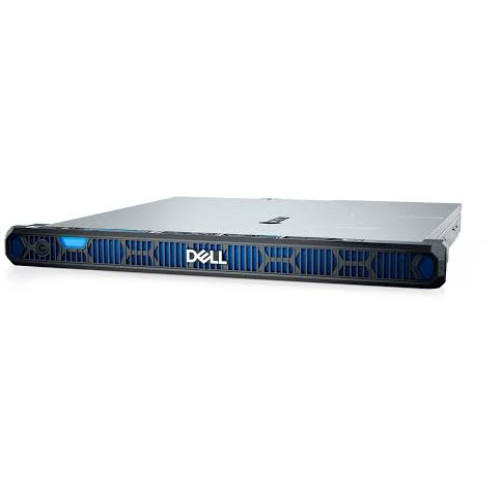

The Dell PowerEdge XR5610 is Dell's most versatile, short-depth 1U rugged server, purpose-built for deploying high-performance compute and demanding workloads directly at the Edge. Its hardened design allows it to operate reliably in harsh, space-constrained environments outside of traditional data centers.

Full Technical Specifications

Component	Specification
Form Factor	1U Rack Server, Short-Depth Chassis (approx. 463mm)
Processor	Single Socket (1S) Intel® Xeon® Scalable Processor with vRAN Boost support, up to 32 cores
Memory	Up to 8 DDR5 DIMM slots, RDIMM support, speeds up to 4800 MT/s
Cooling / Environment	Ruggedized Design, Air-Cooled. • Operational Temperature: $-5^\circ \text{C}$ to $55^\circ \text{C}$ • Tested to MIL 810H standards • Tested to NEBS Level 3 (SR3580) standards
I/O Design	Reverse I/O and power connectors for easy serviceability and cold aisle access
Accelerators	PCIe slots available for add-in NICs/acceleration cards (e.g., PTP, SyncE, integrated FEC)
Storage (Front/Rear)	Supports front- or rear-accessible storage (specific bay options available depending on configuration)
Power Supplies	Redundant power supply options (specific wattage depends on config)
Management	iDRAC9 with Lifecycle Controller and robust security features (Silicon Root of Trust)
Security	Optional lockable smart filtered bezel to withstand dusty/harsh environments

Description

The Dell PowerEdge XR5610 is Dell's highly versatile 1U rugged server successor to the XR11, purpose-engineered to bridge the gap between powerful data center technology and challenging deployment locations at the Edge.

Its single-socket platform features the latest Intel Xeon Scalable Processor with vRAN Boost, making it an ideal engine for computationally intensive, low-latency 5G vRAN and O-RAN telecom workloads that require precision timekeeping (PTP/SyncE).

Designed for harsh environments, the XR5610 is tested against MIL-STD 810H and NEBS Level 3 standards, supporting a wide operational temperature range ( $-5^\circ \text{C}$ to $55^\circ \text{C}$ ). The chassis is short-depth ( $\approx 463 \text{mm}$ ) and utilizes a Reverse I/O design, making it simple to install and service in constrained spaces like telecom cabinets, retail back rooms, or military field operations, while maintaining physical security with an optional filtered bezel. It delivers high-performance compute for distributed workloads such as IoT data aggregation, video analytics, and Point-of-Sale (PoS) applications.
