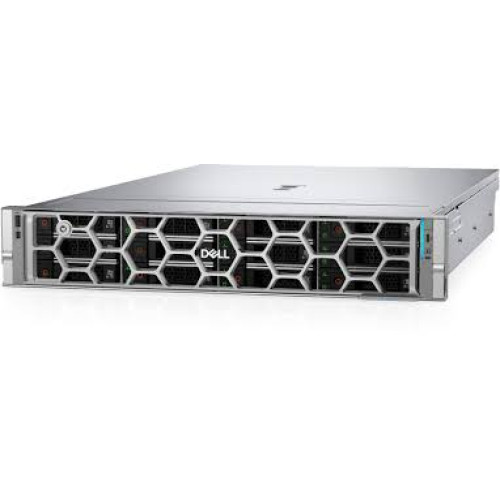

The Dell PowerEdge R570 is a next-generation 2U, single-socket rack server built for high-performance computing, exceptional power efficiency, and massive scalability. It utilizes the latest Intel Xeon 6 processors and cutting-edge storage technology, making it ideal for workloads like virtualization, software-defined storage (SDS) nodes, and VDI.
Full Technical Specifications
| Component | Specification |
| Form Factor | 2U Rack Server (Full Depth) |
| Processor | 1x Intel Xeon 6 Processor (E-core up to 144 cores, P-core up to 86 cores) |
| Max Cores | Up to 144 Cores (Xeon 6 Efficient-core) |
| Memory | 16x DDR5 DIMM slots (RDIMM) |
| Max Memory | 1 TB (Xeon 6 E-core) OR 4 TB (Xeon 6 P-core with R1S option) |
| Memory Speed | Up to 6400 MT/s |
| Drive Bays | Highly Configurable: Up to 12x 3.5-inch drives OR Up to 24x 2.5-inch drives OR Up to 32x EDSFF E3.S Gen5 NVMe SSDs |
| Max Storage Capacity | Up to 1966.08 TB (with 32x EDSFF E3.S drives) |
| Internal Boot | BOSS-N1 DC-MHS (HWRAID 2x M.2 NVMe SSDs) |
| RAID Controllers | PERC H365i, PERC H965i (Internal/Front DC-MHS Adapter options) |
| PCIe Slots | Up to 6x PCIe slots (including up to 4x PCIe Gen5 x16) |
| GPU/Accelerators | Up to 3x Double-Wide 400W GPUs (future feature list) OR Up to 4x Single-Wide 75W Accelerators |
| Networking | Up to 2x OCP NIC 3.0 Gen5 slots (high-speed options available) |
| Power Supplies | Hot-Swap Redundant (800W, 1100W, 1500W, 1800W Platinum/Titanium AC/HVDC/LVDC) |
| Chassis Options | Supports both Cold-Aisle (Front I/O) and Hot-Aisle configurations |
| Security | iDRAC10 (DC-SCM), Silicon Root of Trust, TPM 2.0, Secured Component Verification |
| Management | iDRAC10, iDRAC Direct, OpenManage Enterprise, Redfish API |
Description
The Dell PowerEdge R570 is a revolutionary 2U, single-socket rack server that breaks traditional performance barriers. Designed for large enterprises and data centers, it offers the performance and scalability previously reserved for dual-processor servers, all while maximizing energy efficiency and reducing the Total Cost of Ownership (TCO).
At its core is the Intel Xeon 6 processor (available in either high-core Efficient-core or high-frequency Performance-core SKUs), providing up to 144 cores in a single socket. This compute density is complemented by ultra-fast DDR5 memory (up to 6400 MT/s) and numerous PCIe Gen5 slots.
The R570 excels in storage density, supporting a massive number of drives, including up to 32 next-generation EDSFF E3.S NVMe SSDs for petabyte-scale, high-speed storage. It is also an adaptable accelerator platform, with robust support for both high-wattage double-wide and low-wattage single-wide GPUs. With a modular design supporting Cold-Aisle (Front I/O) configurations and the new iDRAC10 for advanced management, the R570 is an ideal, versatile platform for virtualization, VDI, and scale-out database environments.
