Form Factor: In-table pop-up box (concealed installation).
Video Inputs:
- 1x HDMI (19-pin)
- 1x VGA (15-pin D-Sub)
- 1x DisplayPort (20-pin)
- 1x 3.5mm Mini-Jack (Audio input for VGA)
- 1x Composite Video (RCA) - Note: This input may be present on some versions (e.g., BOX4HDECP) but not all (e.g., BOX4HDECP2).
Video Output:
- 1x HDMI (19-pin)
Maximum Video Resolution (Output):
- Up to 4K (3840x2160) at 30Hz (from HDMI and DisplayPort inputs)
- Up to 1920x1200 (WUXGA) at 60Hz (from VGA input)
- Supports 1080p (1920x1080) at 60Hz
Data Ports:
- 1x RJ-45 (Ethernet Pass-through)
Power/Charging Ports:
- 3x USB 2.0 Type-A (charging ports)
Audio: Supports audio pass-through from inputs to HDMI output.
Switching: Automatic switching to the most recently connected input.
Construction: Durable aluminum finish.
Power Source: AC Adapter (included)
- Input: 100-240V AC
- Output: 12V DC, 2A
Dimensions (Approximate):
- Length: 17.0 cm (6.7 in)
- Width: 10.0 cm (3.9 in)
- Height (when closed): 9.8 cm (3.9 in)
Weight: Approximately 1.1 kg (2.5 lb) - 1.7 kg (3.8 lb) depending on the exact model.
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Certifications: Often TAA compliant, FCC, RoHS.
Warranty: Typically 2-year StarTech.com warranty.

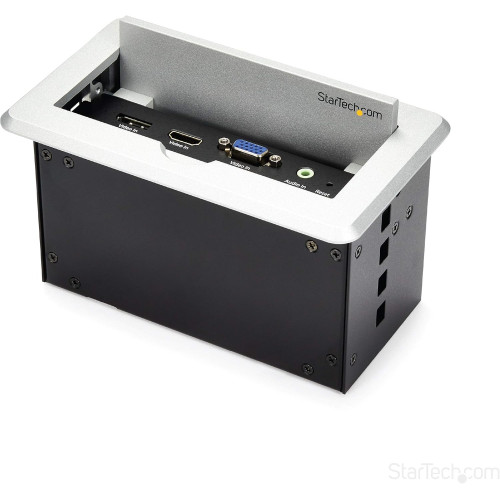

StarTech Conference Table Connectivity Pop up Box with AV and Data Ports
